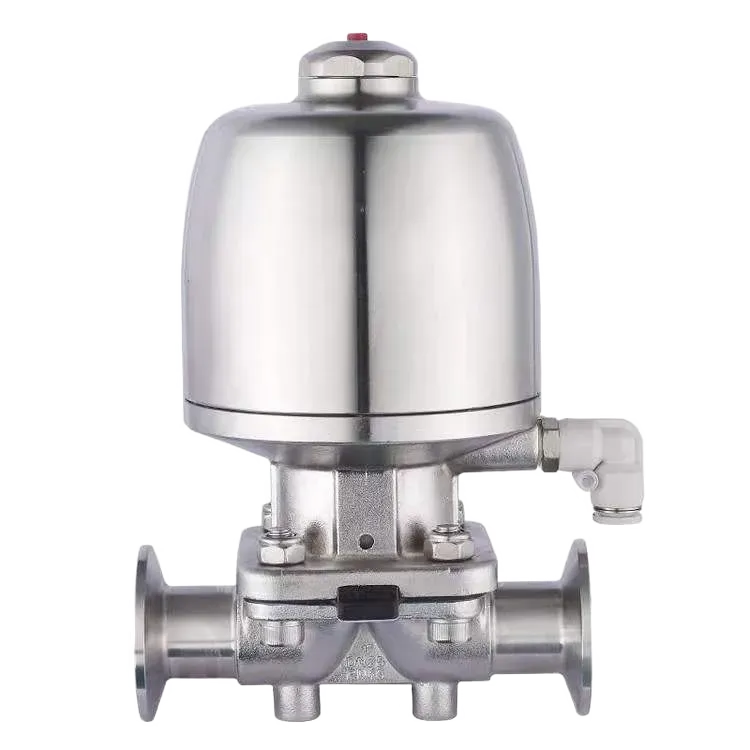

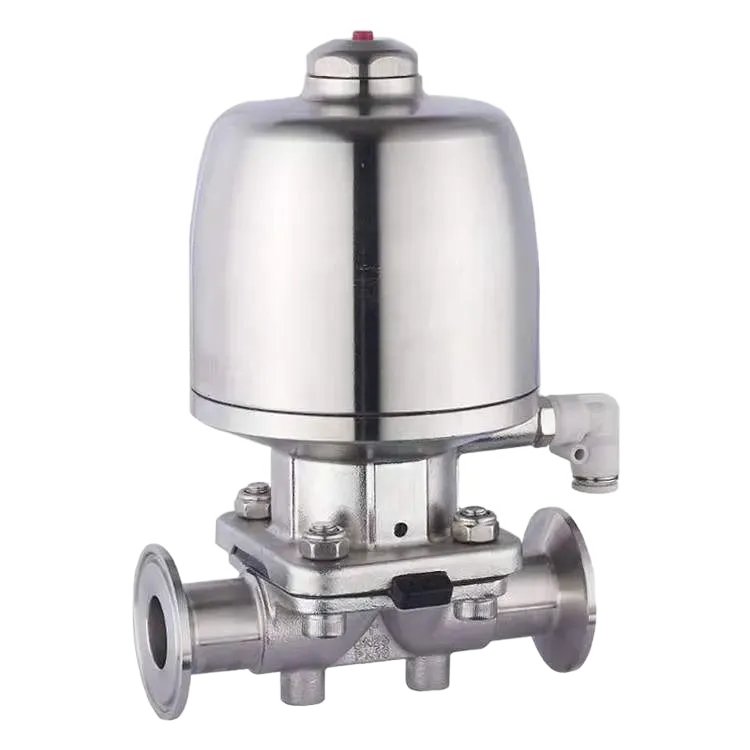

Sanitary Pneumatic Quick-Install Diaphragm Valve Product Introduction
Manufactured in strict accordance with national standards, this sanitary pneumatic quick-install diaphragm valve features a diaphragm structure and a balanced disc design. It combines manual operation with pneumatic adaptability, offering flexible control in single-acting mode, making it an excellent choice for fluid shutoff applications.
The valve utilizes EPDM lining and sealing materials. This soft-seal method ensures reliable sealing performance for bi-directional flow under normal pressure and ambient temperature conditions. It safely controls oxygen, water, weak acids and alkalis, and various highly corrosive chemical media.
Equipped with a quick-install connection structure, the product allows for the optional selection of accessories such as pneumatic valve positioners, smart positioners, and clamps based on specific needs. This ensures convenient installation and disassembly, along with efficient maintenance.
Its sanitary design precisely meets the stringent requirements of industries such as food, cosmetics, pharmaceuticals, chemical processing, and coal. With stable shutoff performance and excellent corrosion resistance, it provides a safe and reliable solution for various high-demand fluid control scenarios.
| Size | ΦD1 | ID | L | H | J |
| DN20 | 50.5 | 18.1 | 117 | 128 | 96 |
| DN25 | 50.5 | 22.1 | 128 | 128 | 96 |
| DN32 | 50.5 | 28.5 | 145 | 210 | 110 |
| DN40 | 50.5 | 34.8 | 150 | 210 | 110 |
| DN50 | 64.0 | 47.5 | 179 | 260 | 137 |
| DN65 | 77.5 | 60.3 | 200 | 310 | 157 |
| DN80 | 106.0 | 81.0 | 256 | 310 | 157 |
