Description

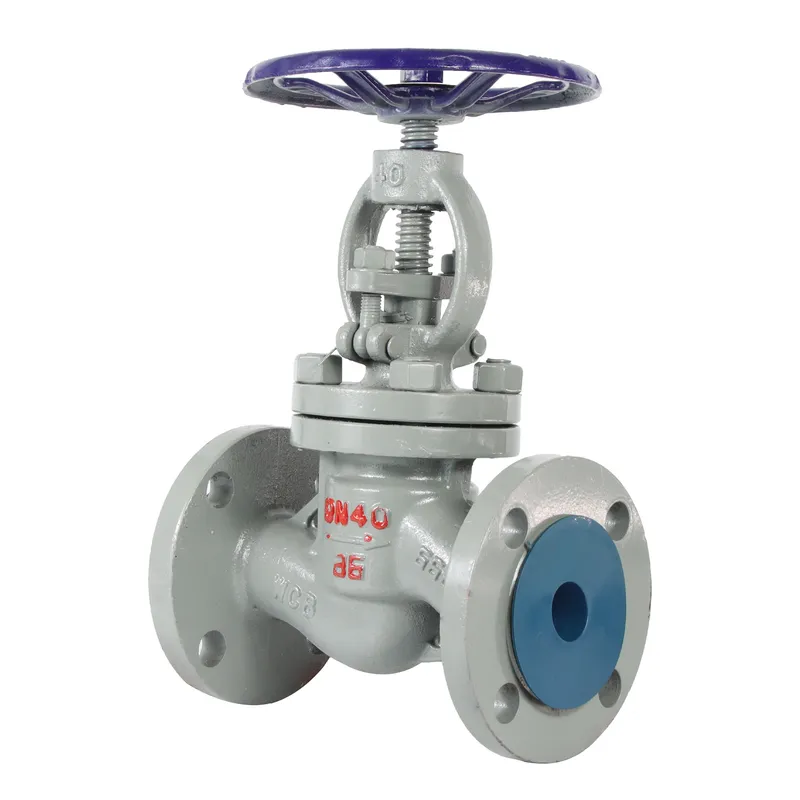

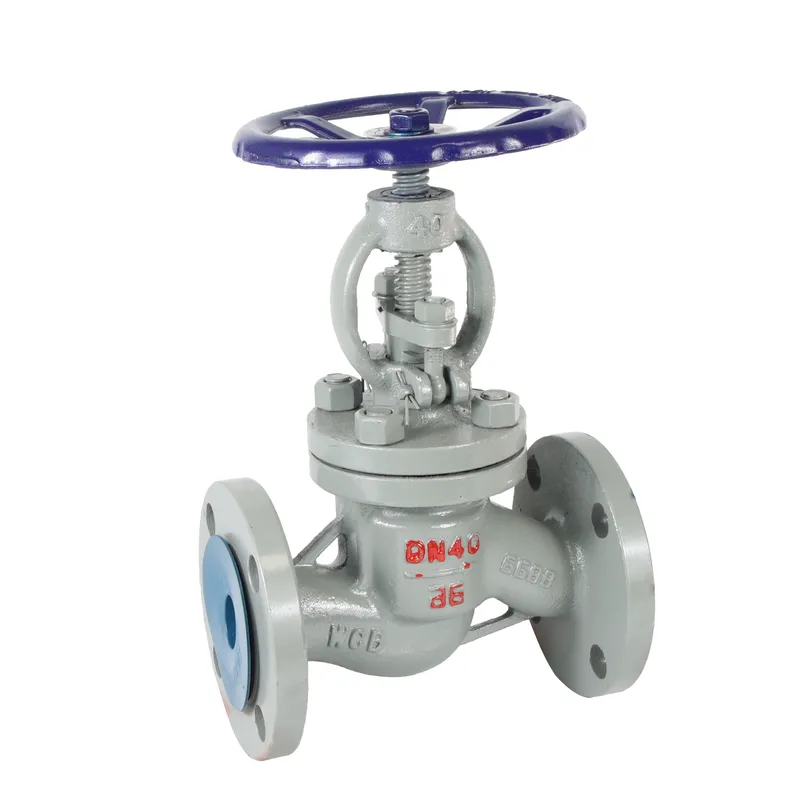

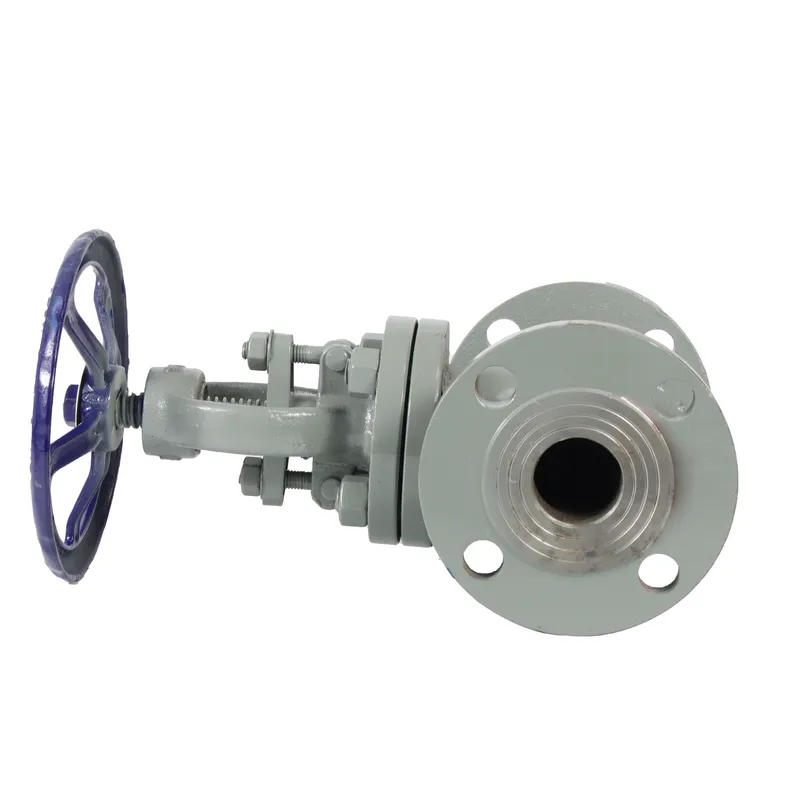

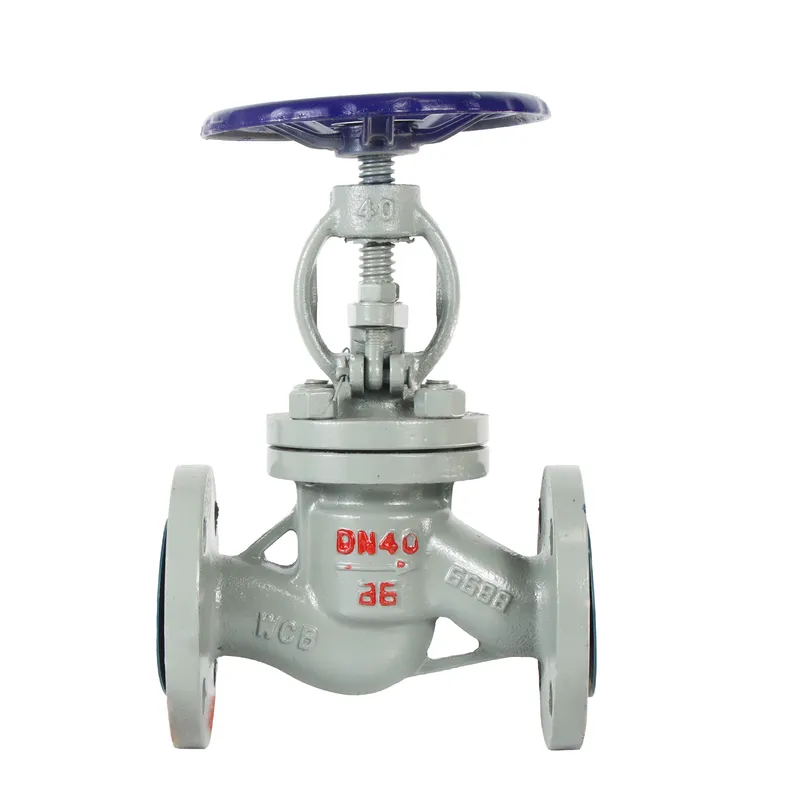

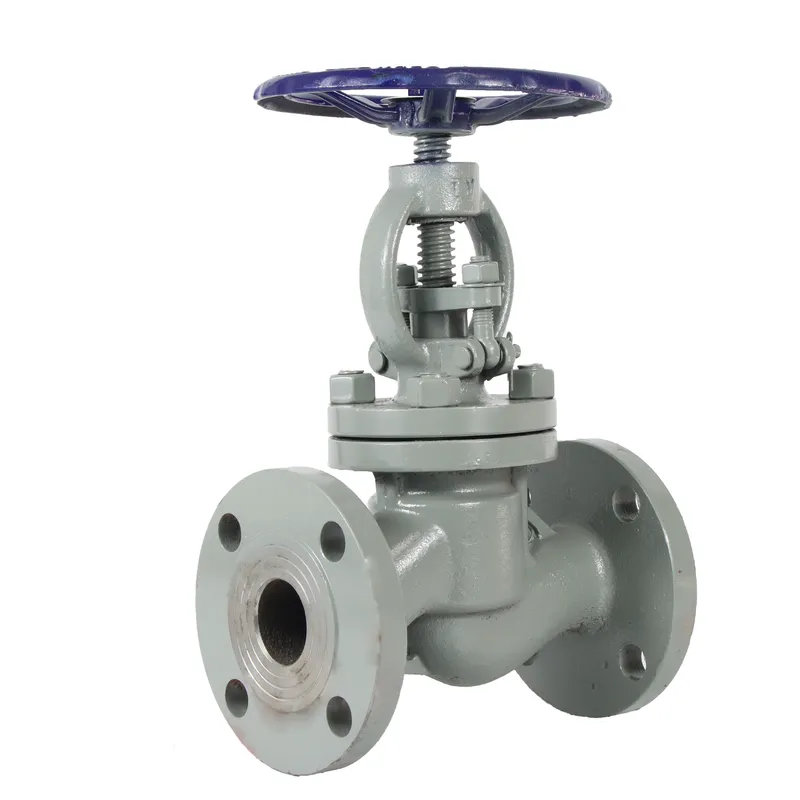

Cast Steel Flange Globe Valve

This valve is a durable cast steel valve designed for reliable flow control in demanding industrial environments. Featuring a PTFE soft seal, it provides superior leak-proof performance even under high temperature (-29°C to 200°C) and high pressure (PN16/PN40) conditions.

Its WCB cast steel body offers excellent corrosion and wear resistance, ensuring long service life and consistent performance. Ideal for applications involving steam, oil, gas, and chemical media, this valve delivers dependable shut-off and precise regulation in both high-pressure and high-temperature systems.

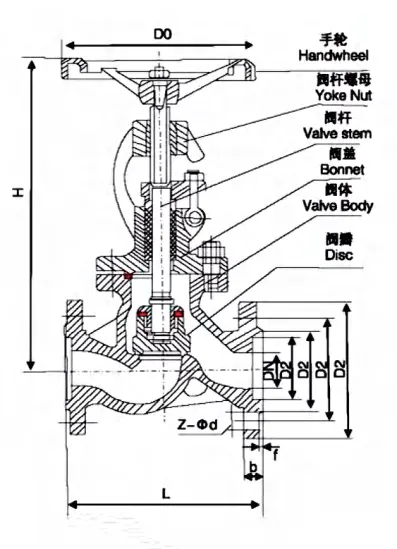

Nominal diameter DN（mm）	Measurement（mm)
Nominal diameter DN（mm）	L	D	D1	D2	b-f	Z×φd	H	DO
15	130	95	65	45	16-2	4xφ14	170	120
20	150	105	75	55	16-2	4xφ14	190	140
25	160	115	85	65	16-2	4xφ14	205	160
32	180	140	100	78	18-2	4xφ18	270	180
40	200	150	110	85	18-3	4xφ18	310	200
50	230	165	125	100	18-3	4xφ18	358	240
65	290	185	145	120	18-3	4xφ18	373	280
80	310	200	160	135	20-3	8xφ18	435	320
100	350	220	180	155	20-3	8xφ18	500	360
125	400	250	210	185	22-3	8xφ18	614	400
150	480	285	240	210	24-3	8xφ23	674	400
200	600	340	295	265	26-3	12xφ23	818	450
250	730	405	355	320	30-3	12xφ25	969	550
