Description

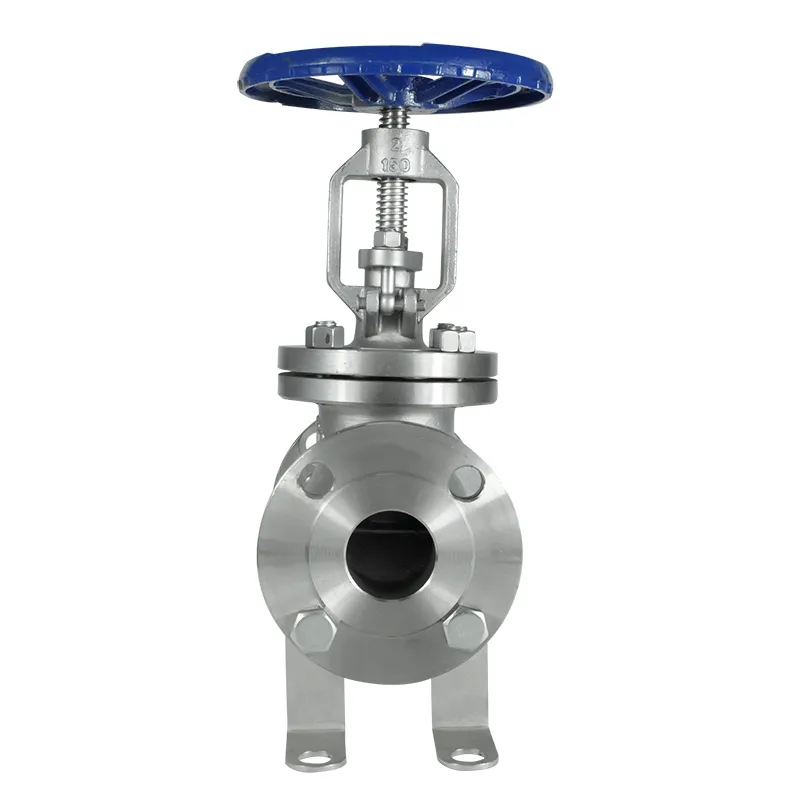

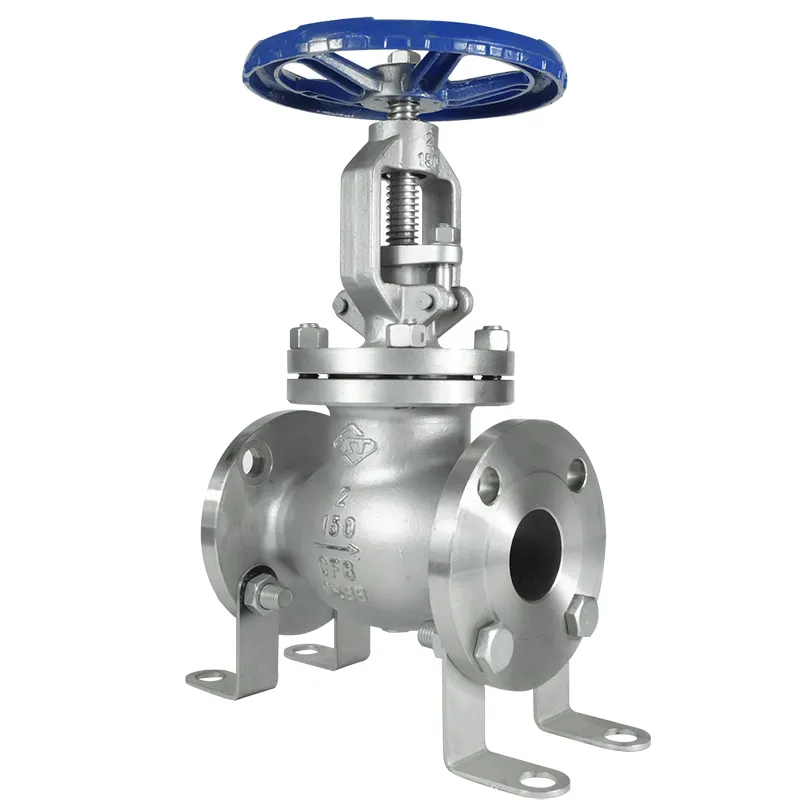

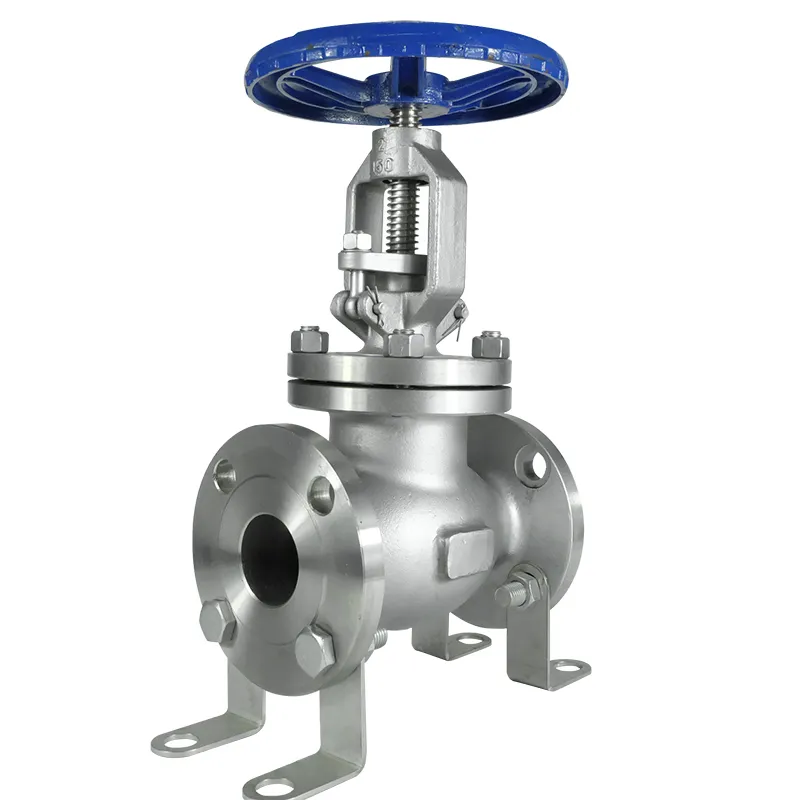

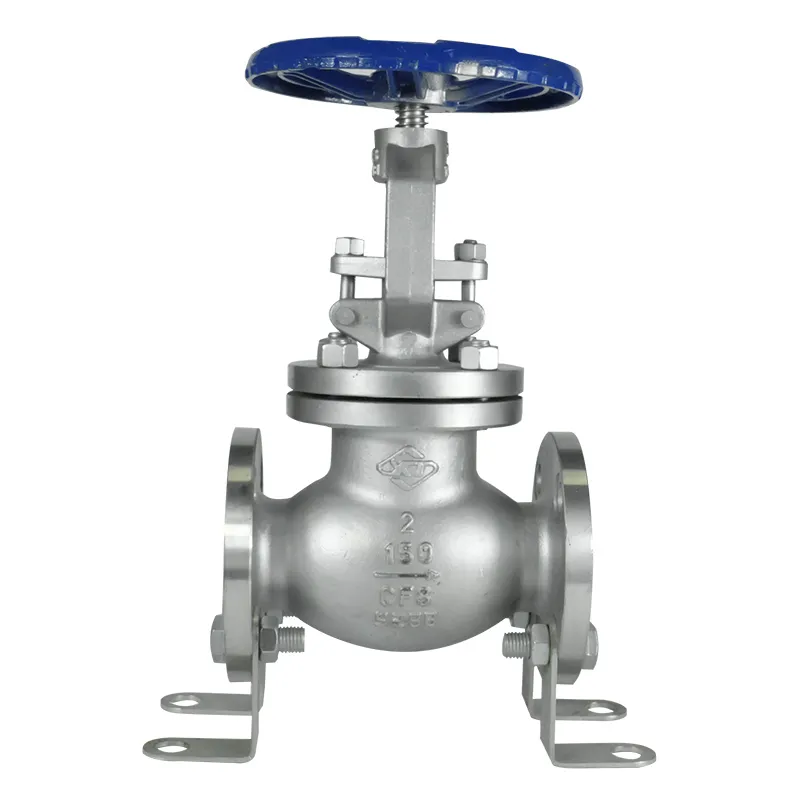

The globe valve series is available in sizes from ½” to 24″ and complies with ANSI Pressure Class 150# to 1500# standards.

Manufactured from carbon steel, stainless steel, brass, or cast iron, these valves can be equipped with spring return, non-spring return, or electronic fail-safe actuators to suit different operational needs.

With options for NPT/BSP threaded or flanged end connections, our globe valves deliver versatility, reliability, and durability for a wide range of industrial applications.

Inch	DN	L	D	D1	D2	b	Z-Фd	H	D0
1/2”	15	108	89	60.5	35	12	4-Ф15	155	120
3/4”	20	117	98	70	43	12	4-Ф15	160	120
1”	25	12	108	79.5	51	12	4-Ф15	200	140
1-1/4”	32	140	117	89	64	12	4-Ф15	245	160
1-1/2”	40	165	127	98.5	73	13	4-Ф15	285	180
2”	50	178	152	120.5	92	15	4-Ф15	315	200
2-1/2”	65	190	178	139.5	105	16	4-Ф19	375	220
3”	80	203	190	152.5	127	18	4-Ф19	400	240
4”	100	229	229	190.5	157	19	4-Ф19	460	280
5”	125	254	254	216	186	24	8-Ф19	540	300
6”	150	267	279	241.5	216	26	8-Ф22	620	320
8”	200	292	343	298.5	270	29	8-Ф22	800	400
10”	250	330	406	362	324	31	12-Ф25	850	450
12”	300	356	483	432	381	32	12-Ф25	1000	500
