Description

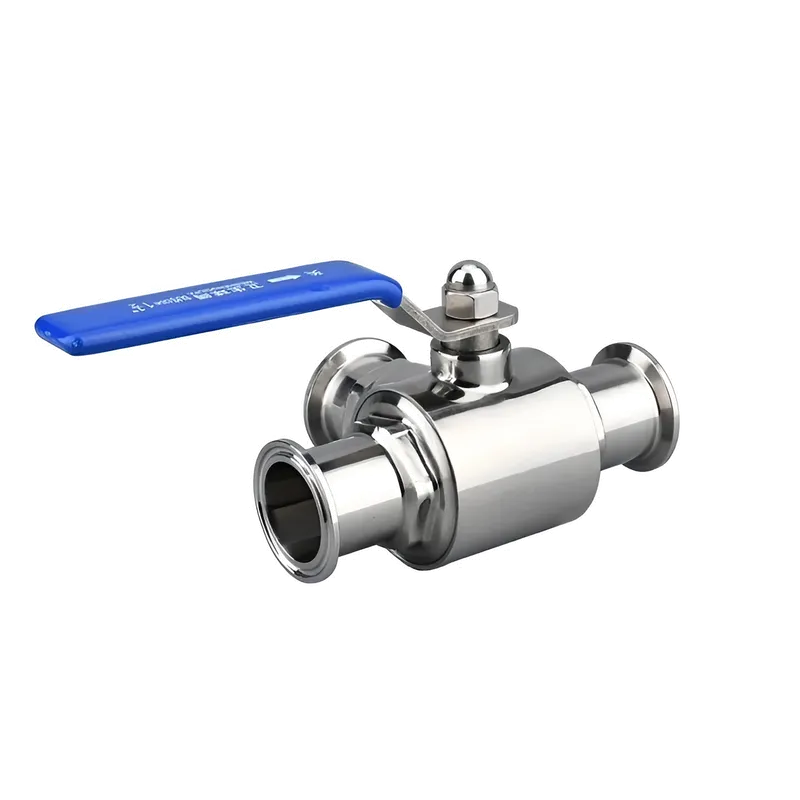

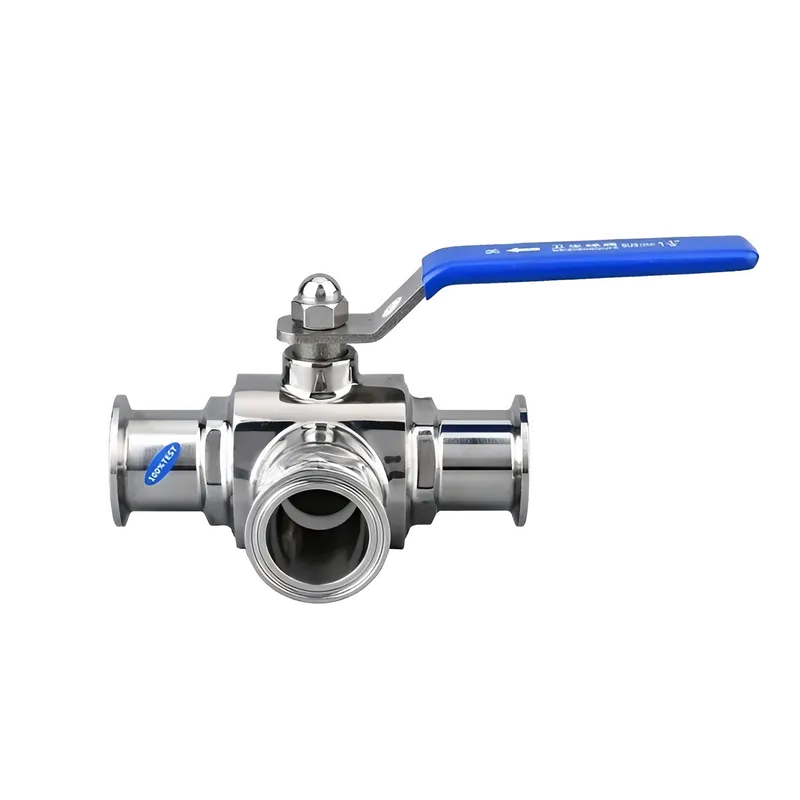

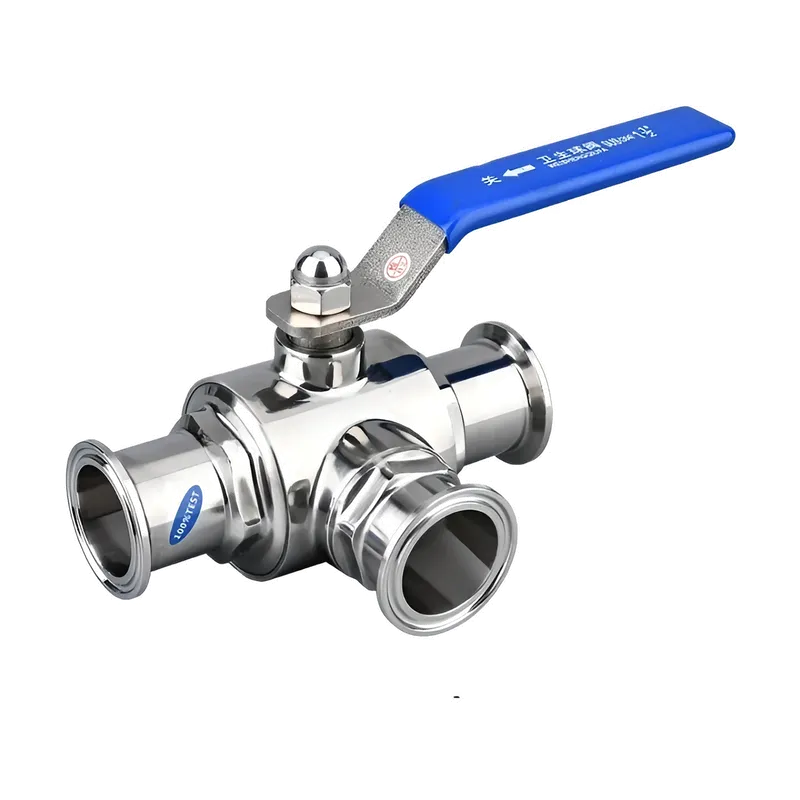

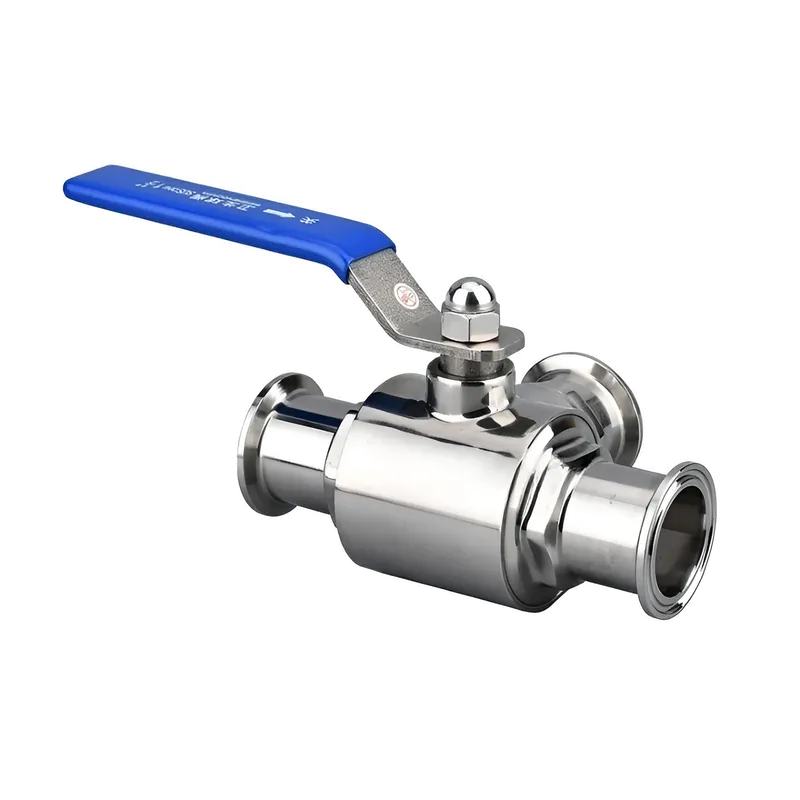

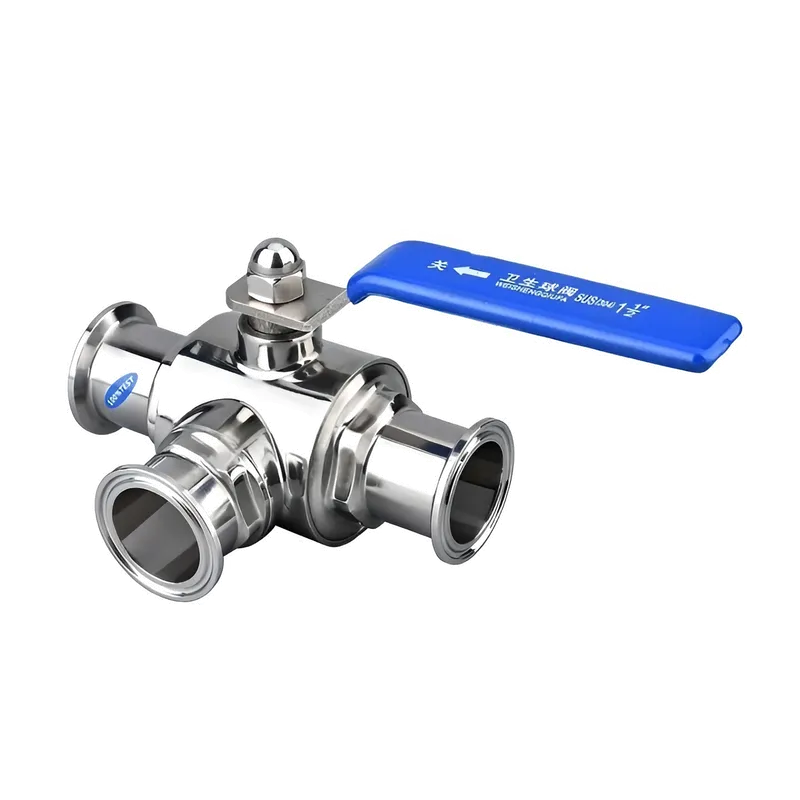

Hygienic Tri-clamp Three-way Ball Valve
Crafted from 304/316L food-grade stainless steel, this valve meets the stringent sanitary requirements of the pharmaceutical, food & beverage, and daily chemical industries.
Key features include:
- Sterilization & Cleanliness: The mirror-polished flow path and zero-dead-leg design ensure complete CIP (Clean-in-Place) and SIP (Sterilization-in-Place) compatibility, effectively eliminating media residue.
- Efficient Installation: The tri-clamp connection adheres to industry-standard fittings, boosting installation efficiency by 50% compared to traditional methods.
- User-friendly Operation: Equipped with a PP seal and a clearly marked “OFF” handle, it offers corrosion resistance, durability, and intuitive operation. It supports versatile fluid control applications such as flow diversion and directional switching.
Certified to GMP and FDA standards, this valve is ideal for fluid transfer in sterile preparations, dairy products, and high-end cosmetics. It stands as a reliable solution for critical sanitary production processes.
| Size | d1 | d2 | D | L | K | H | S |
| 3/4″ | 17.0 | 17 | 50.5 | 105 | 50.5 | 56 | 123.0 |
| 1″ | 22.0 | 22 | 50.5 | 120 | 60.0 | 62 | 136.5 |
| 1 1/4″ | 29.0 | 29 | 50.5 | 130 | 66.0 | 74 | 136.5 |
| 1 1/2″ | 35.0 | 35 | 50.5 | 156 | 74.0 | 75 | 150.0 |
| 2″ | 47.5 | 42 | 64.0 | 168 | 84.0 | 88 | 178.0 |
| 2 1/4″ | 53.0 | 52 | 77.5 | 195 | 92.0 | 96 | 192.0 |
| 2 1/2″ | 59.0 | 67 | 77.5 | 195 | 92.0 | 109 | 192.0 |
| 3″ | 72.0 | 66 | 91.0 | 215 | 111.0 | 112 | 260.0 |
| 3 1/2″ | 80.0 | 80 | 106.0 | 230 | 116.0 | 129 | 260.0 |
| 4″ | 100.0 | 94 | 119.0 | 260 | 135.0 | 164 | 322.0 |
