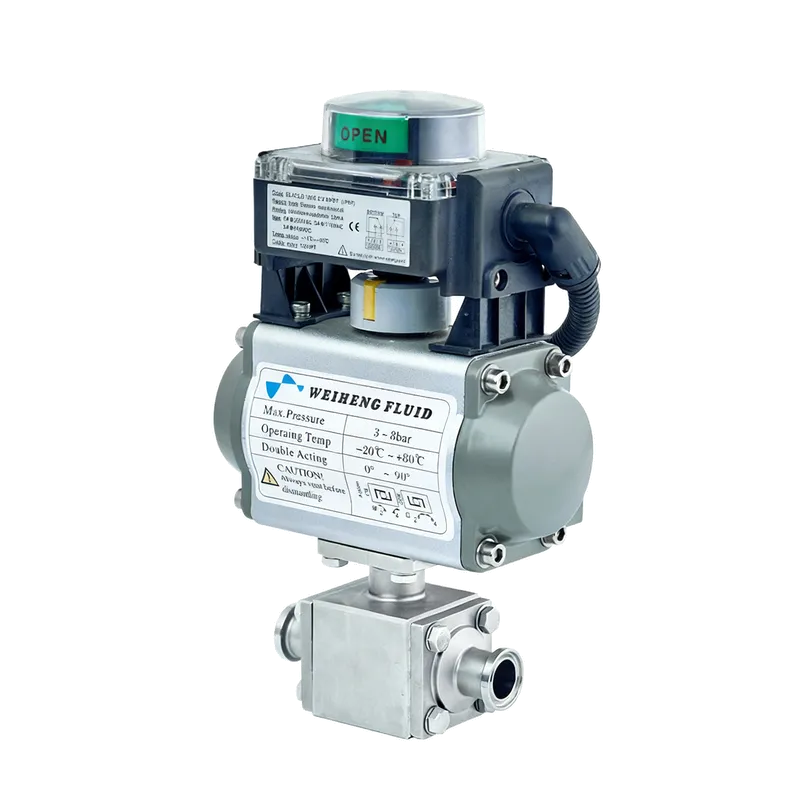

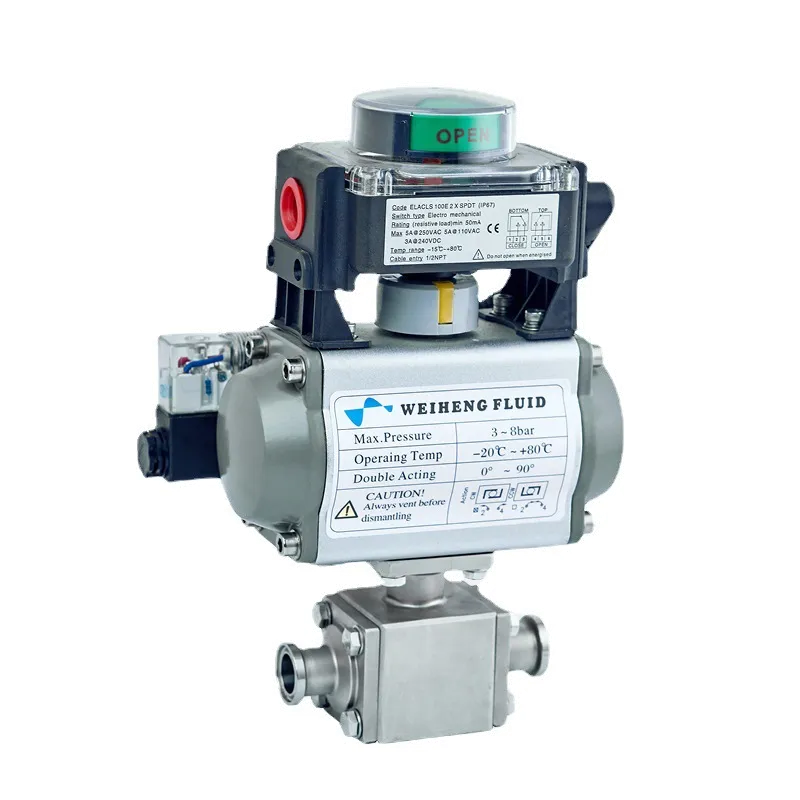

Sanitary Square Pneumatic Ball Valve

The Sanitary Square Pneumatic Ball Valve is a specialized valve series engineered for hygienic material handling and transfer. Its high-purity design meets the stringent sanitary standards of industries such as food and pharmaceuticals.

Its core advantage lies in its hygienic construction, which allows it to seamlessly integrate into production processes across the food sector—including food processing, beverage/juice production, and brewing. It is equally suited for continuous processes in the hygiene sector, such as biopharmaceuticals, vaccine research, and personal care, providing durable and reliable fluid control for various high-cleanliness scenarios.

Driven pneumatically for efficient and stable operation, this valve features a square body design that simplifies installation and maintenance. Combined with sanitary-grade materials, it not only ensures the sterility of material transfer but also withstands long-term operation under complex conditions, making it an ideal choice for fluid control in hygienic industries.

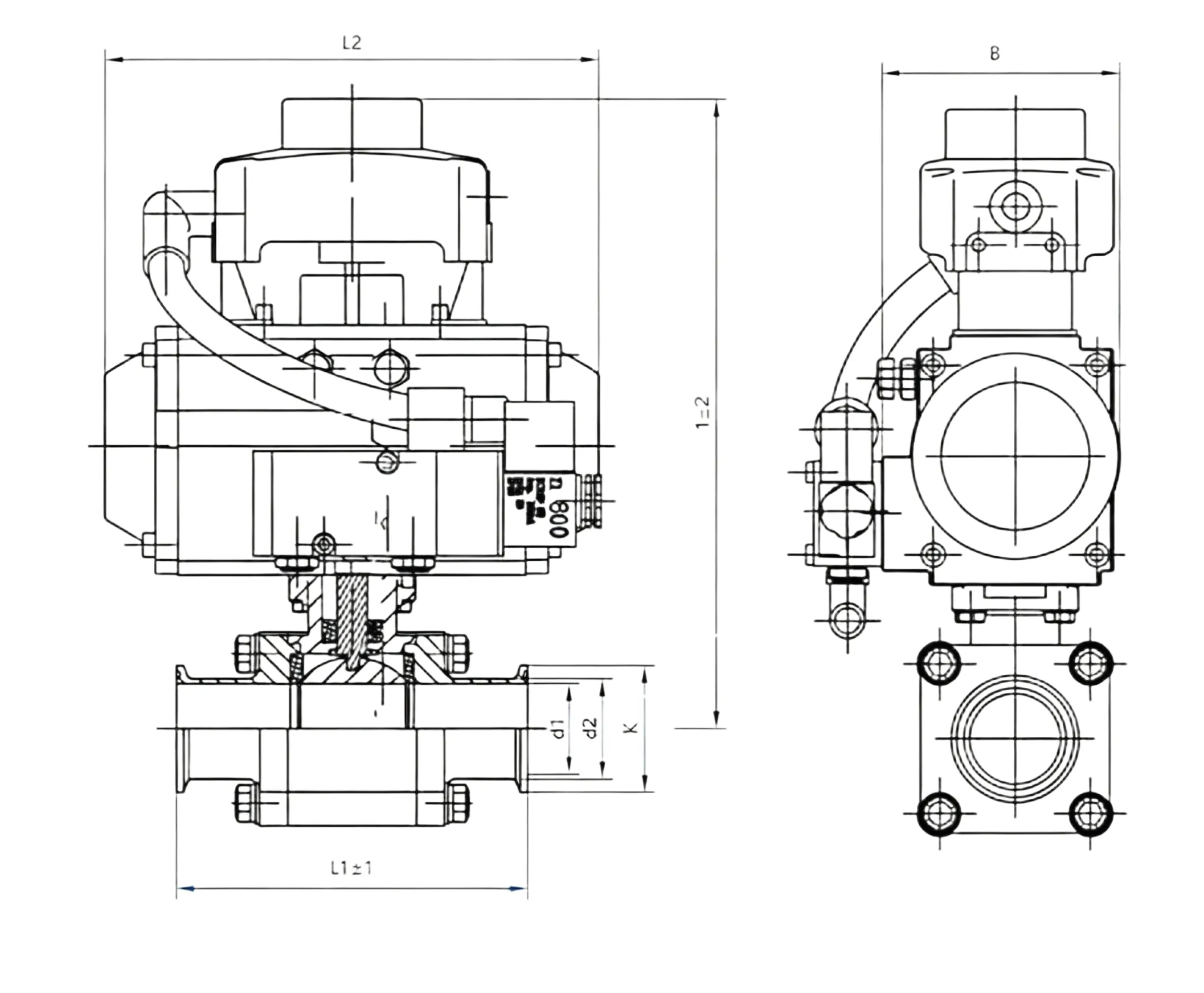

Size	d1	d2	K	L1	L2	H	B
1/2″	9.5	12.7	25.4	90	120	165	48
3/4″	16.0	19.1	50.5	90	115	150	70
1″	22.5	25.4	50.5	115	168	200	83
1 1/4″	28.0	31.8	50.5	125	168	210	83
1 1/2″	35.0	38.1	50.5	140	219	225	95
2″	47.5	50.8	64.0	156	230	245	105
2 1/2″	59.5	63.5	77.5	195	250	256	110
3″	73.0	76.2	91.0	220	275	300	122
3 1/2″	85.0	89.0	106.0	230	275	325	122
4″	98.0	101.6	119.0	240	315	260	132
