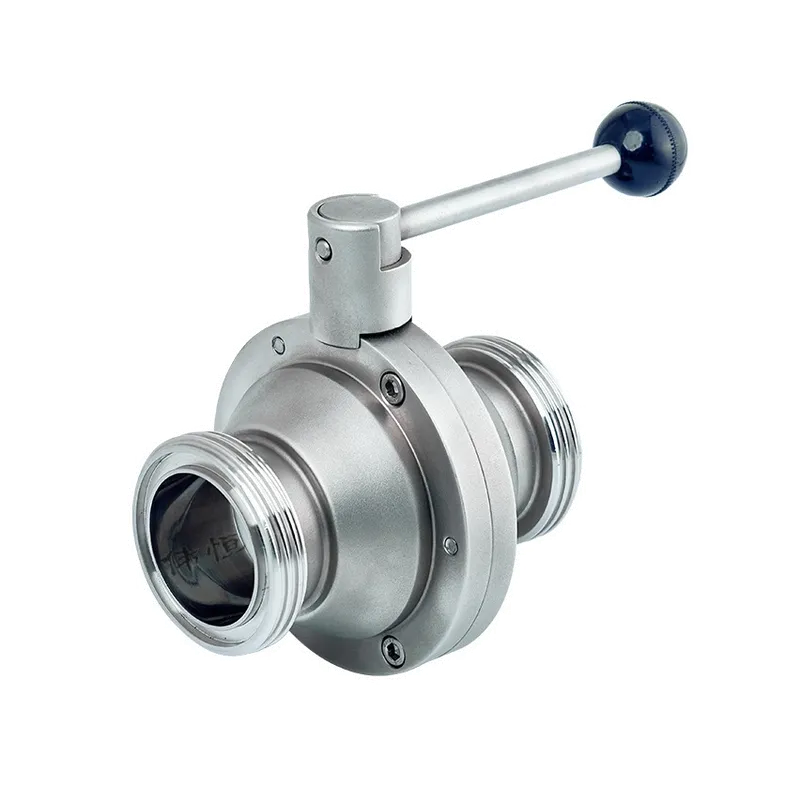

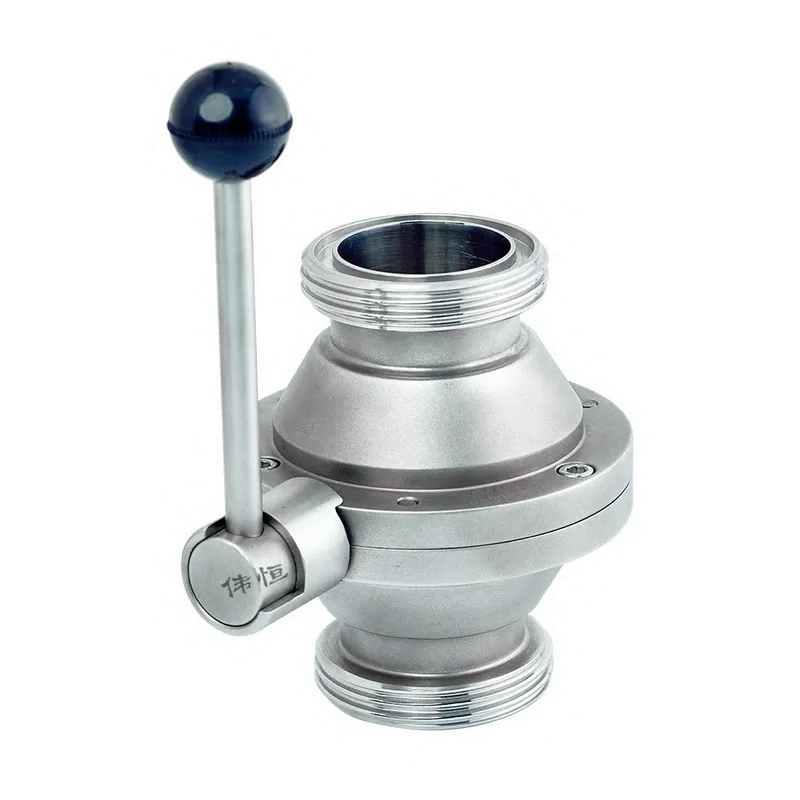

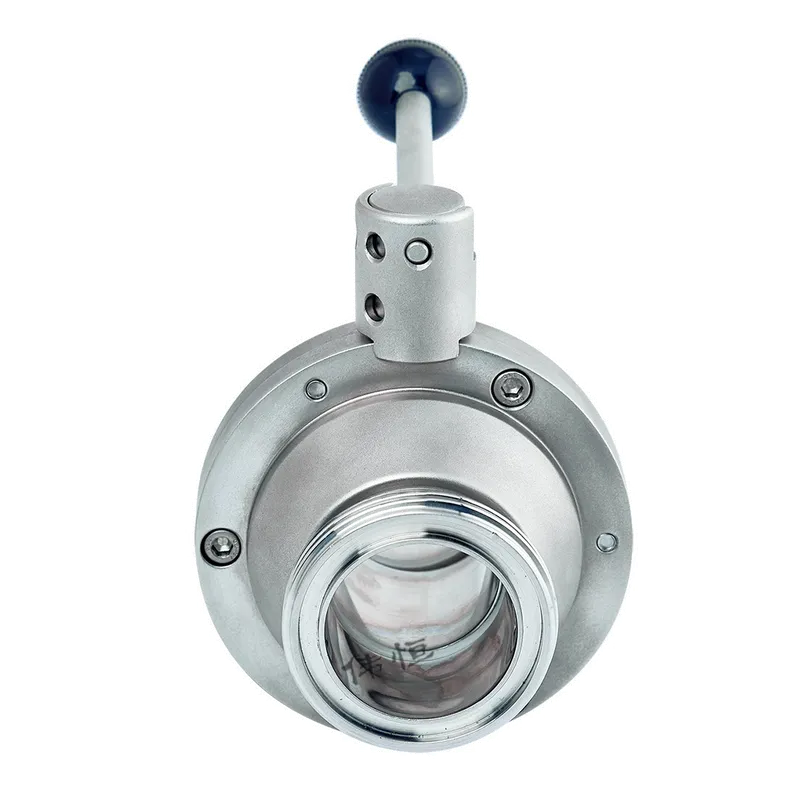

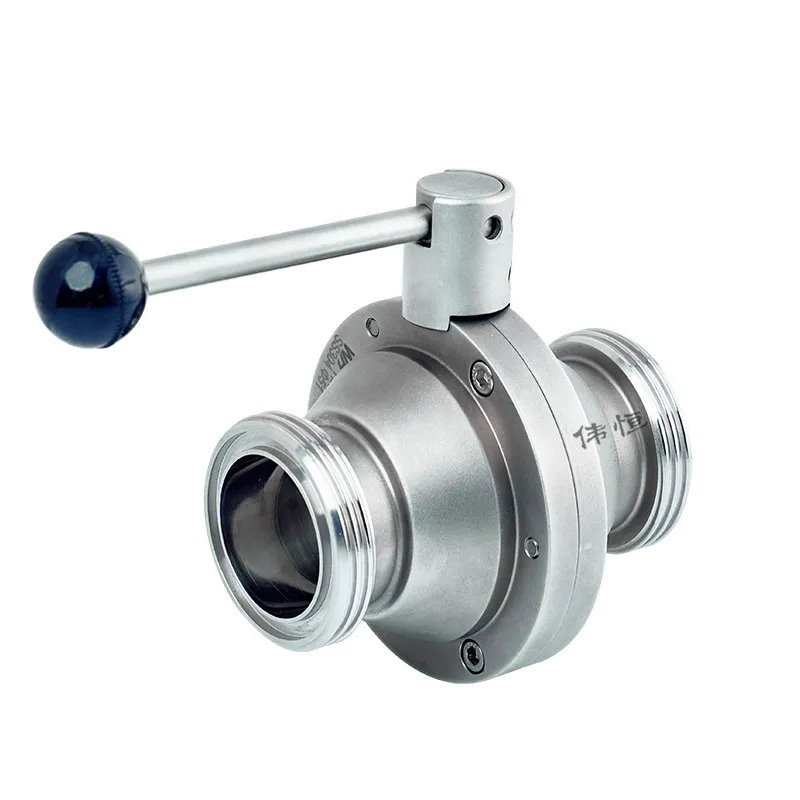

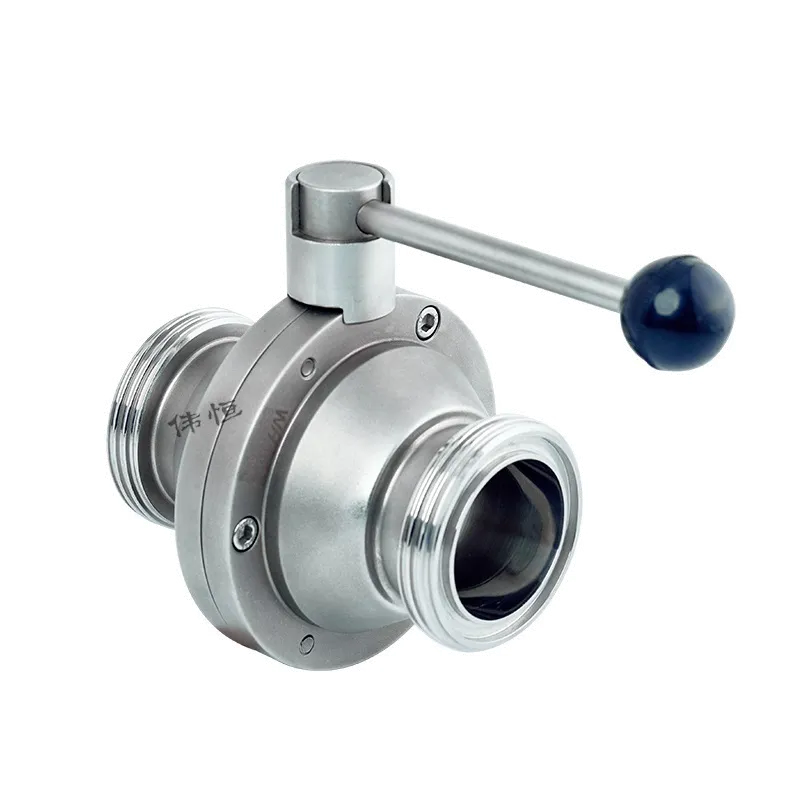

Sanitary Threaded Butterfly-Type Ball Valve

The Sanitary Threaded Butterfly-Type Ball Valve is a specialized control component for fluid pipeline systems. Centered on a unique design that combines butterfly-style threaded connections with a ball valve structure, it meets fluid control requirements across diverse industries such as food, pharmaceuticals, and chemical processing.

Constructed from high-specification materials, the valve offers excellent corrosion resistance, pressure tolerance, and sealing performance, ensuring stable operation under complex conditions. The innovative butterfly-thread design enables rapid pipeline connection, while the streamlined structure provides the advantages of a compact size, light weight, and easy installation. It features effortless operation and low maintenance costs.

Operational Guidelines:

Ensure correct alignment during installation and avoid external impact forces.
Open and close the valve gradually to prevent damage from sudden operation.
Conduct regular inspections to maintain sealing integrity and optimal performance.

With its combination of high performance, low cost, and ease of operation, this valve is an ideal, practical, and economical control device for fluid pipeline systems.

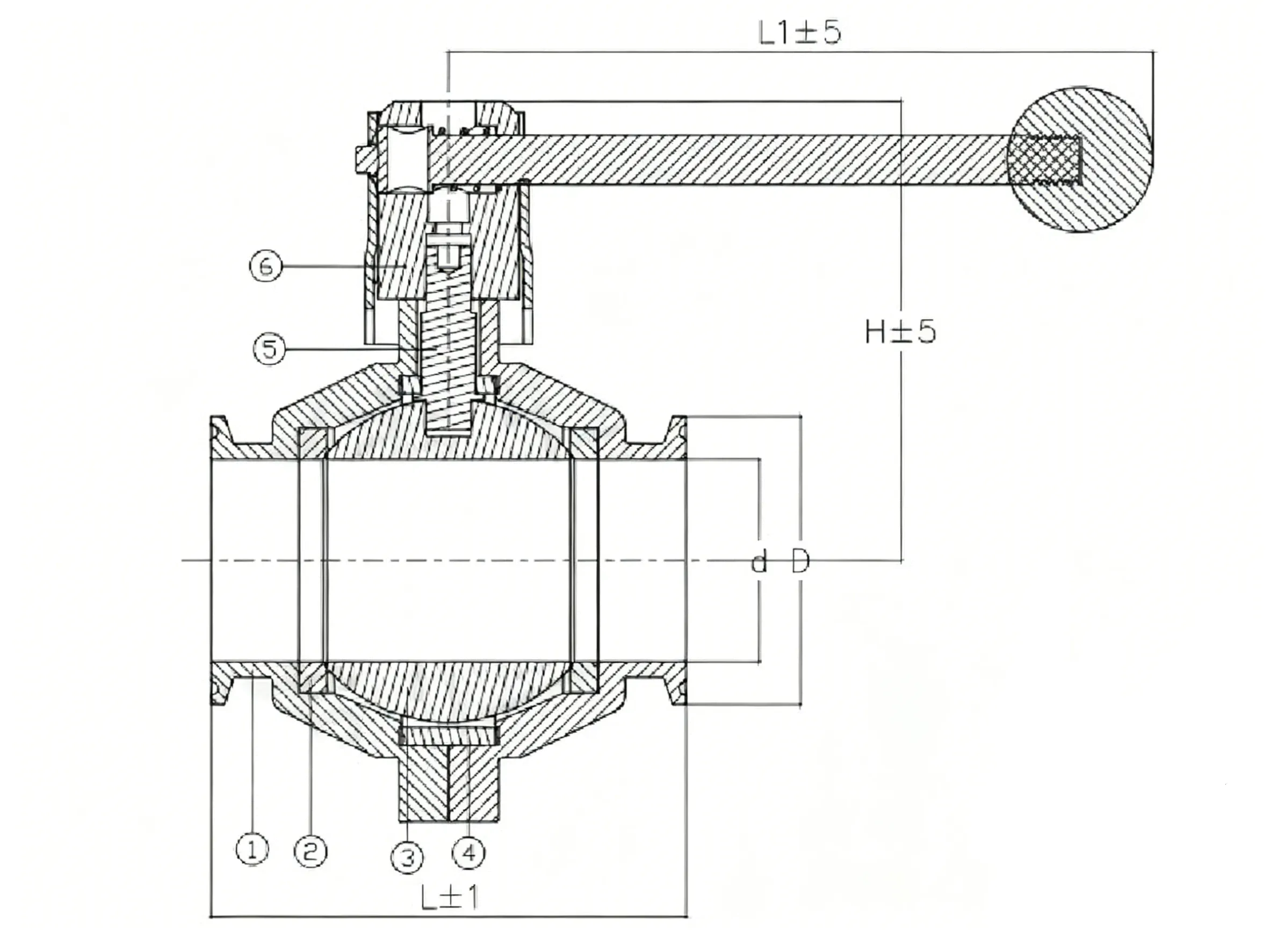

SIZE	d	D	L	L1	H
1″	22.2	50.5	80	155	84
1.25″	28.6	50.5	80	155	85
1.5″	34.9	50.5	100	155	95
2″	45.0	64.0	105	155	102
2.5″	59.5	77.5	126	155	115
3″	72.2	91.0	136	155	129
4″	97.6	119.0	170	155	146
