Description

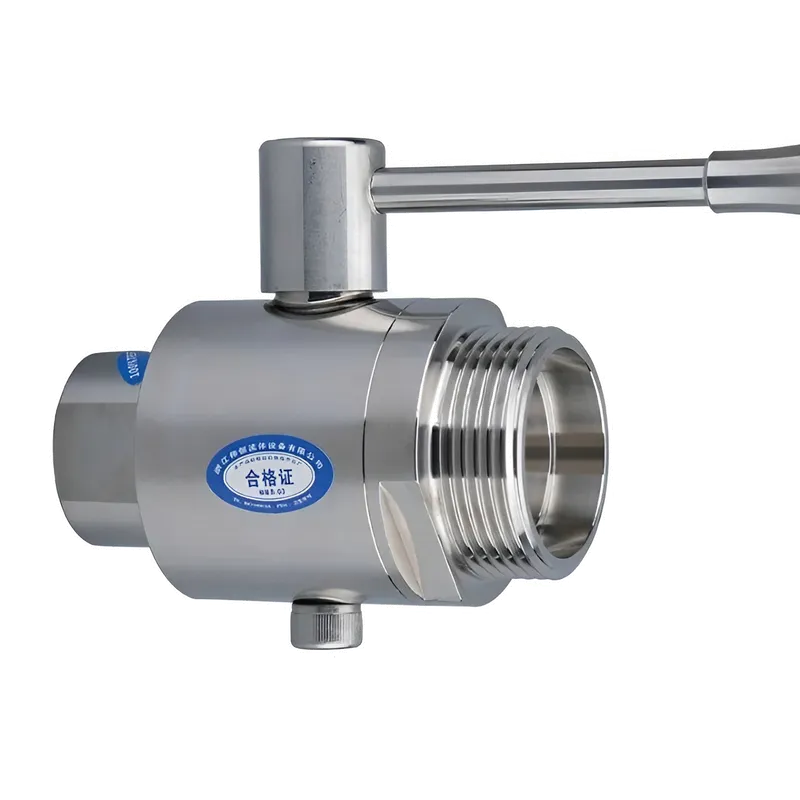

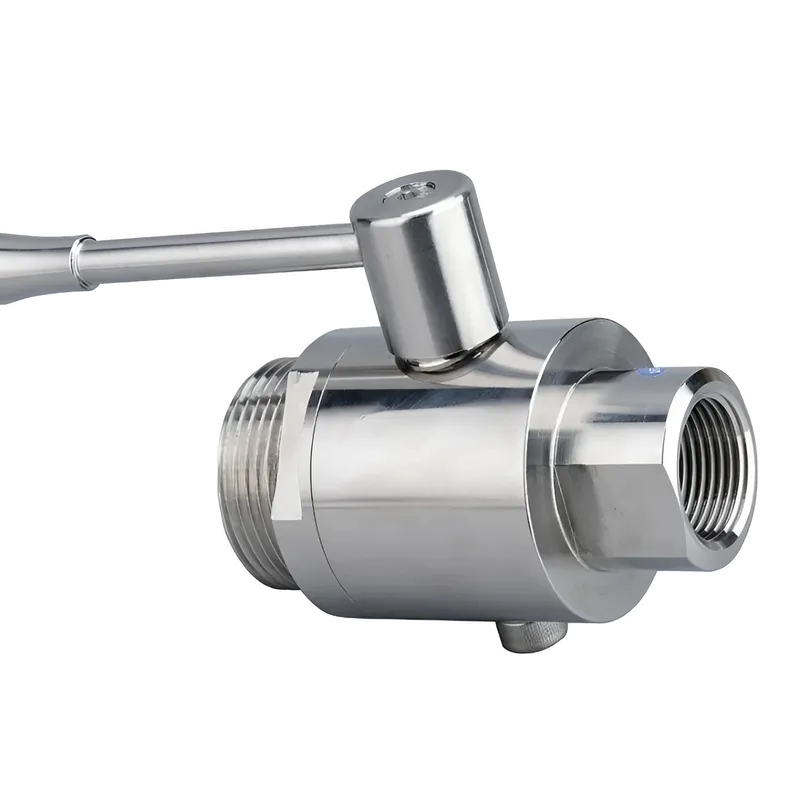

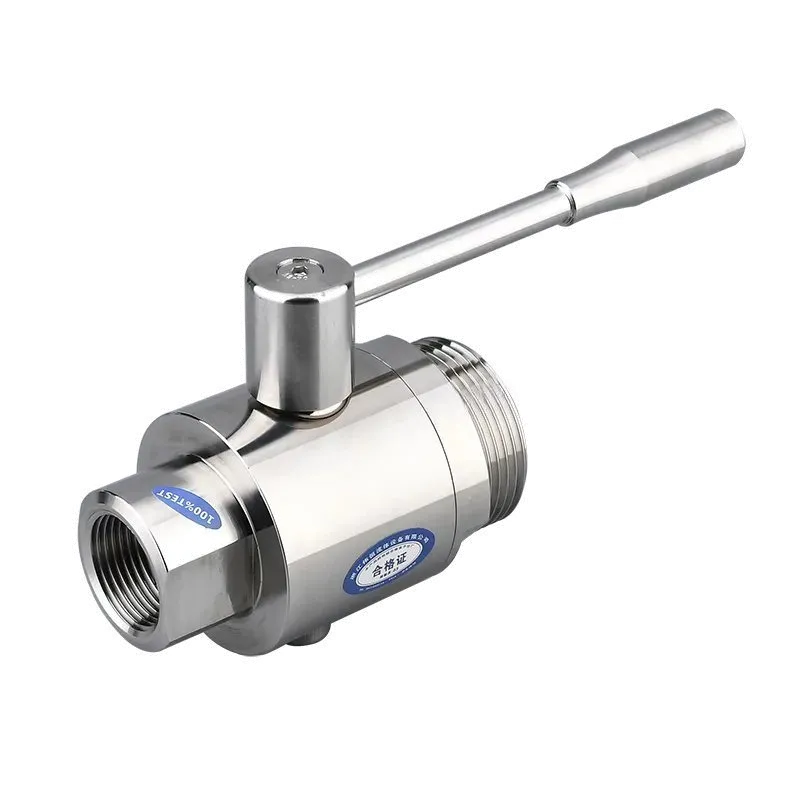

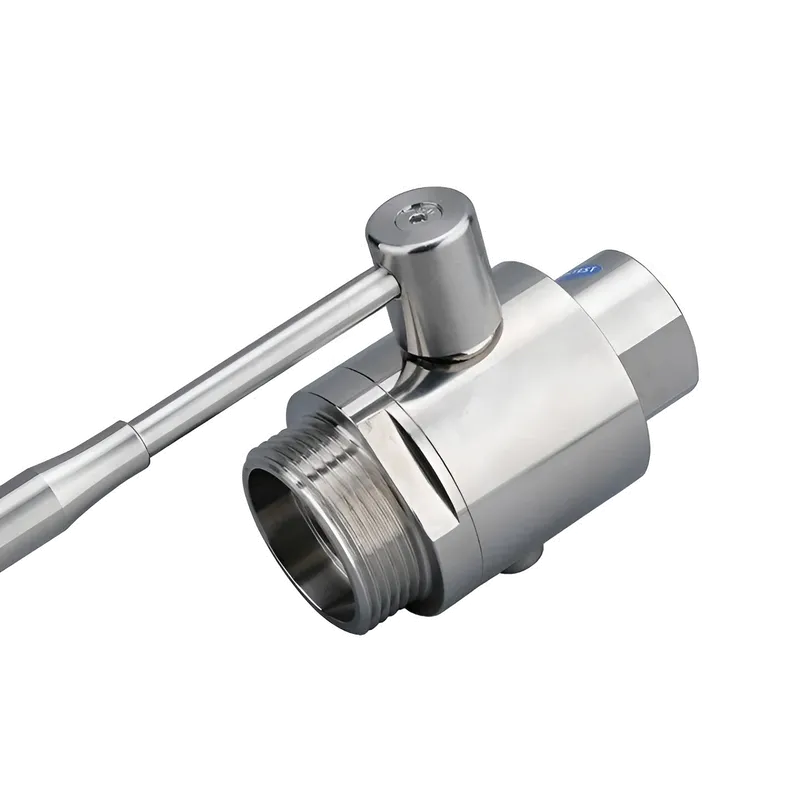

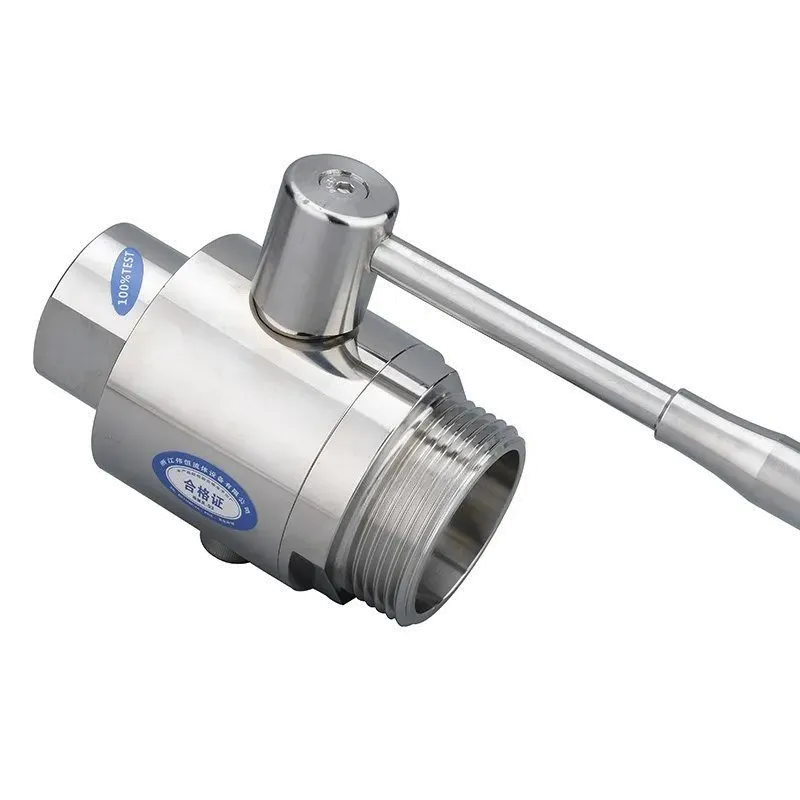

Two-piece Thread Forged Fixed Ball Valve

The Two-piece Thread Forged Fixed Ball Valve is a specialized fluid control device engineered for sanitary and high-pressure applications in the food, pharmaceutical, and chemical industries. Forged from 304 stainless steel, the body features a compact structure with high strength. Both interior and exterior mirror polishing ensures compliance with industry standards such as GMP, DIN, and 3A, guaranteeing contamination-free material contact.

The product offers distinct advantages: The two-piece design, combined with internal/external threaded connections, balances installation stability with maintenance convenience. A spherical ball disc enables rapid on/off operation, while high-performance sealing materials such as PTFE and EPDM provide excellent sealing integrity and corrosion resistance. This allows for stable operation across various media—including gases, liquids, oils, and steam—under a wide temperature range of -29°C to 425°C and a nominal pressure of 1.6 MPa, with pressure resistance reaching up to 2000 psi.

With wide-ranging applications, this valve is a highly reliable fluid control solution that meets both sanitary standards and the demands of harsh operating conditions. In the food and beverage industry, it is suitable for juice and dairy transfer pipelines. In pharmaceutical applications, it satisfies the sterile requirements of liquid preparation and purified water systems. In the chemical industry, it effectively handles the transfer of acidic and alkaline media.

two-piece-thread-forged-fixed-ball-valve-outline

SIZE	L	K	D	d	S1	H
½″	95	25.2	12.7	9.6	102	45
¾″	108	50.5	19.1	15.9	150	49
1″	120	50.5	25.4	22.2	155	55
1¼″	130	50.5	32.0	28.0	155	59
1½″	140	50.5	38.1	34.9	155	68
2¾″	135	64.0	45.0	42.0	168	79
2″	160	64.0	50.8	47.6	168	83
2½″	180	77.5	63.5	59.5	180	92
3″	210	91.0	76.2	72.2	205	96
3½″	225	106.0	89.0	81.0	205	105
4″	255	119.0	102.0	97.6	310	138
