Description

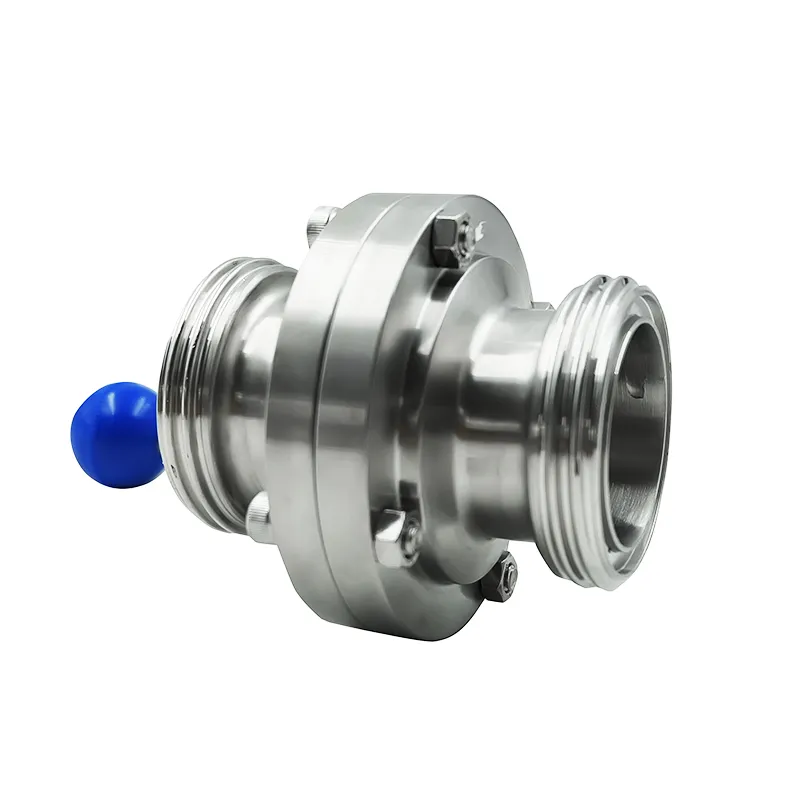

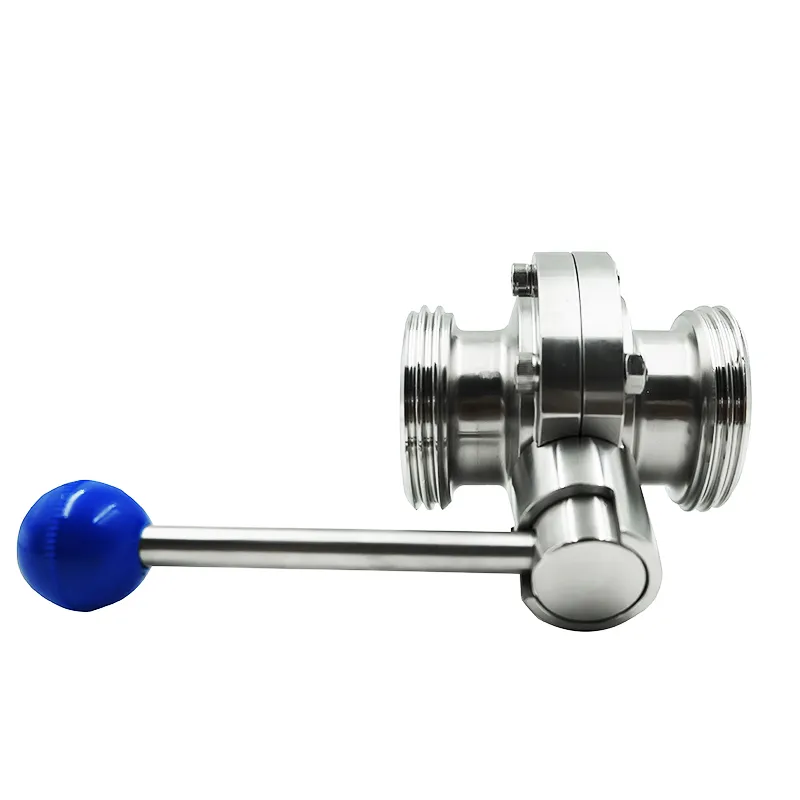

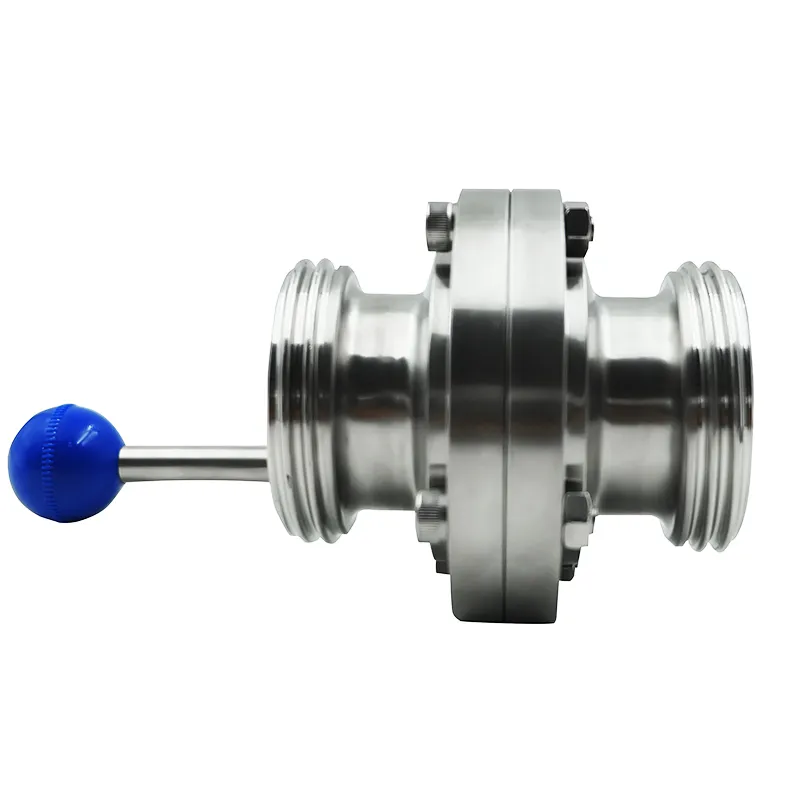

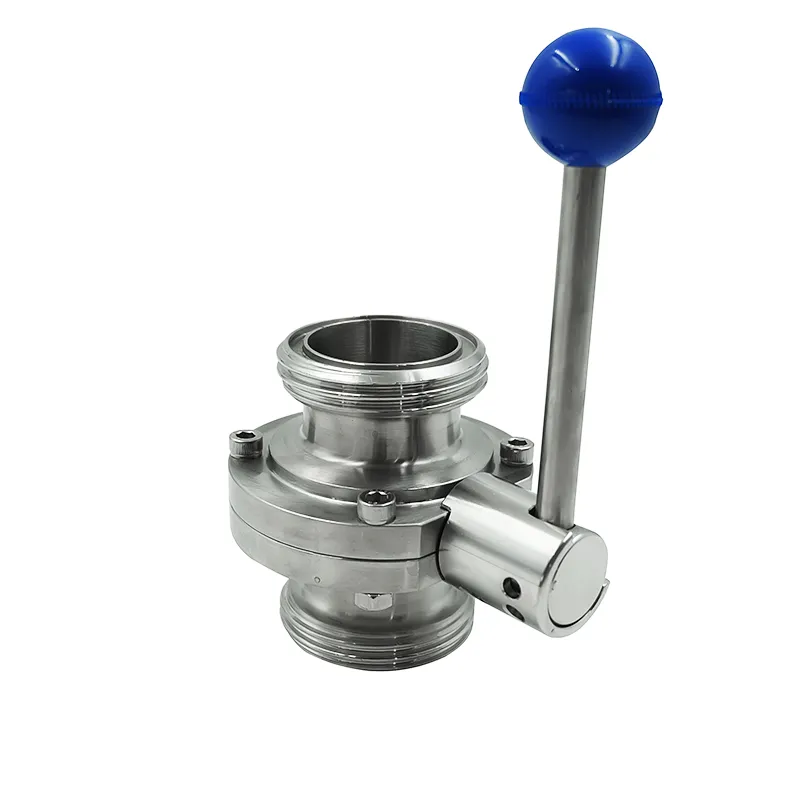

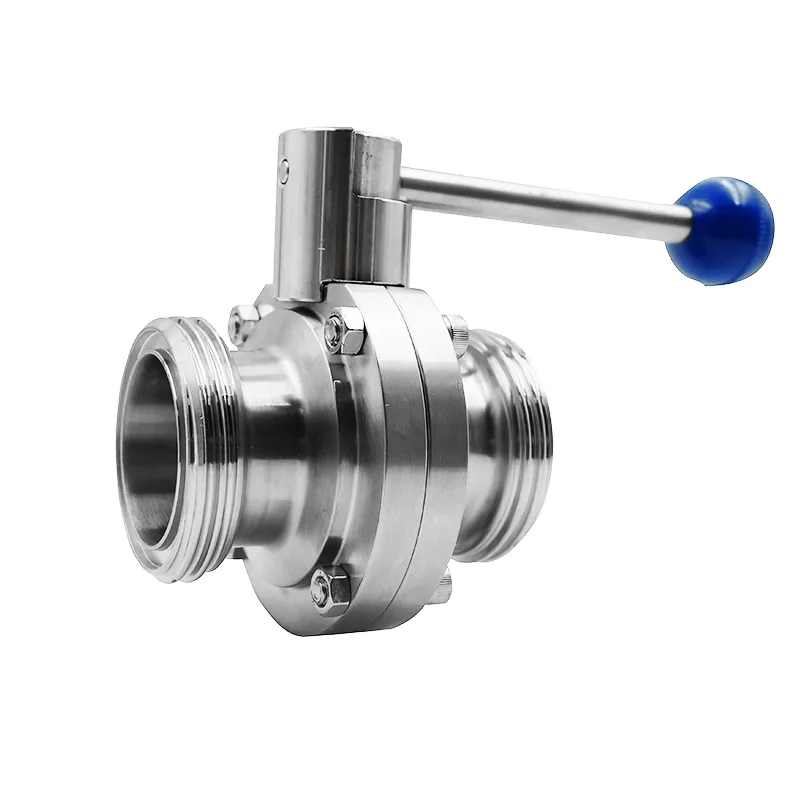

Sanitary Butterfly Valve is widely used in industries such as beer, beverages, dairy, juice, pharmaceuticals, and bioengineering.

It features high-quality imported seals that meet FDA sanitary standards, ensuring exceptional hygiene and reliability.

With excellent resistance to strong acids, alkalis, and high temperatures, this valve is built for demanding sanitary applications.

The precision-forged valve core offers superior strength and pressure resistance up to 1.2 MPa, ensuring durability and preventing deformation under pressure.

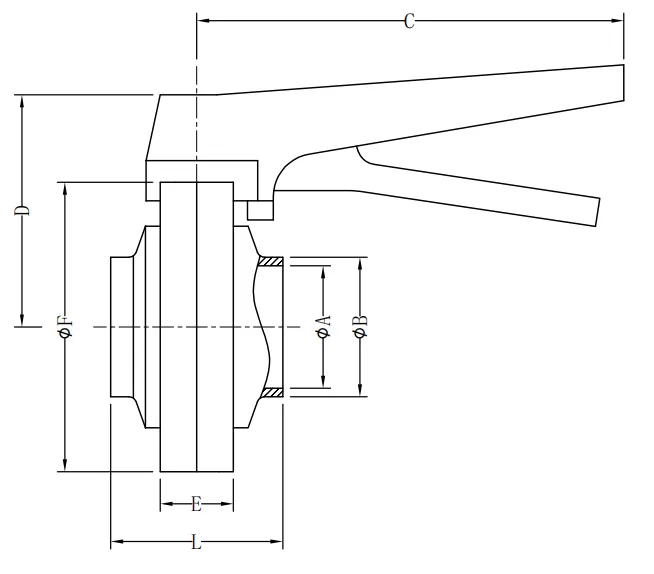

SIZE	ΦA	ΦB	C(2#)	C(3#)	C(4#)	D(2#)	D(3#)	D(4#)	E	F	Square Core	L
φ19	16	19	147	137	147	72.5	72	69	20	79	8×8	47
φ25	22.4	25.4	147	137	147	72.5	72	69	20	79	8×8	47
φ32	28.8	31.8	147	137	147	72.5	72	69	20	79	8×8	47
φ38	35.1	38.1	147	137	147	72.5	72	69	20	79	8×8	47
Φ45	42	45	147	137	147	77	76.5	73.5	20	88	8×8	50
φ51	47.8	50.8	147	137	147	83	82.5	79.5	20	100	8×8	52
φ57	53	57	147	137	147	86	85.5	82.5	20	106	8×8	52
φ63	59.5	63.5	168	163	150	91.5	95.5	87.5	22	115	10×10	54
φ76	72.2	76.2	168	163	150	98	102	94	22	127	10×10	56
φ89	84.9	88.9	168	163	150	104.5	108.5	100.5	22	140	10×10	58
φ102	97.6	101.6	168	163	150	112.5	116.5	108.5	22	156	10×10	60
φ108	104	108	168	163	150	112.5	116.5	108.5	22	156	10×10	60
